-Energy Saving And Carbon Reduction Automatic Sliding Door System-
The BRISA-M2 system
-2.jpg)
PRODUCTS / SLIDING DOOR / Magnetic Linear Sliding Door System / BRISA-M2 Energy Saving And Children/Pet-friendly Design Automatic Sliding Door System
BRISA-M2 Energy Saving And Children/Pet-friendly Design Automatic Sliding Door System
* EN16005 certified
* 2 million endurance cycles test passed
* Extremely low power consumption of 10W only to drive the max. door weight up to 90kg.

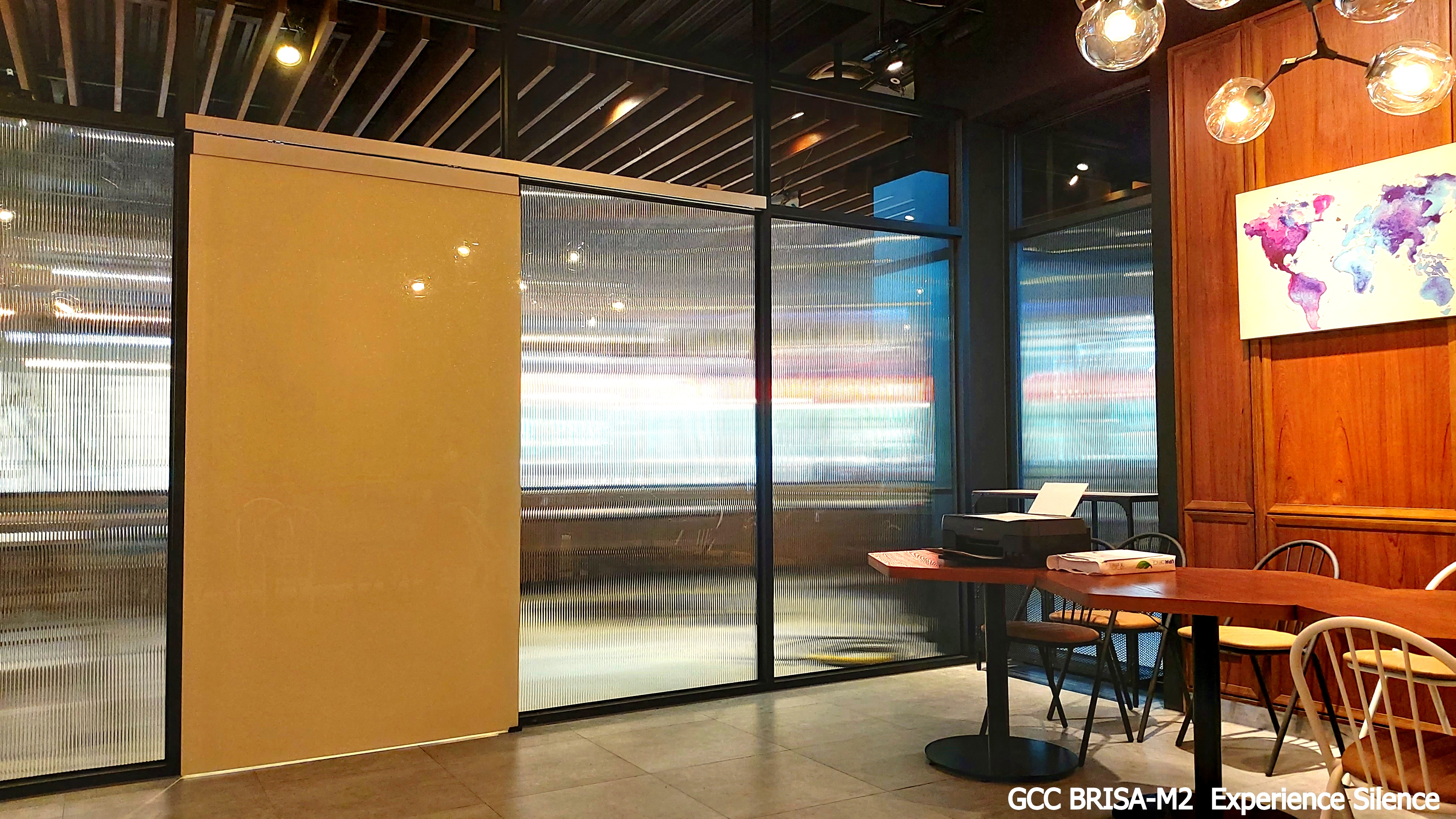

* For the max. door width up to 1250mm(over 1250mm~1600mm is available by order)

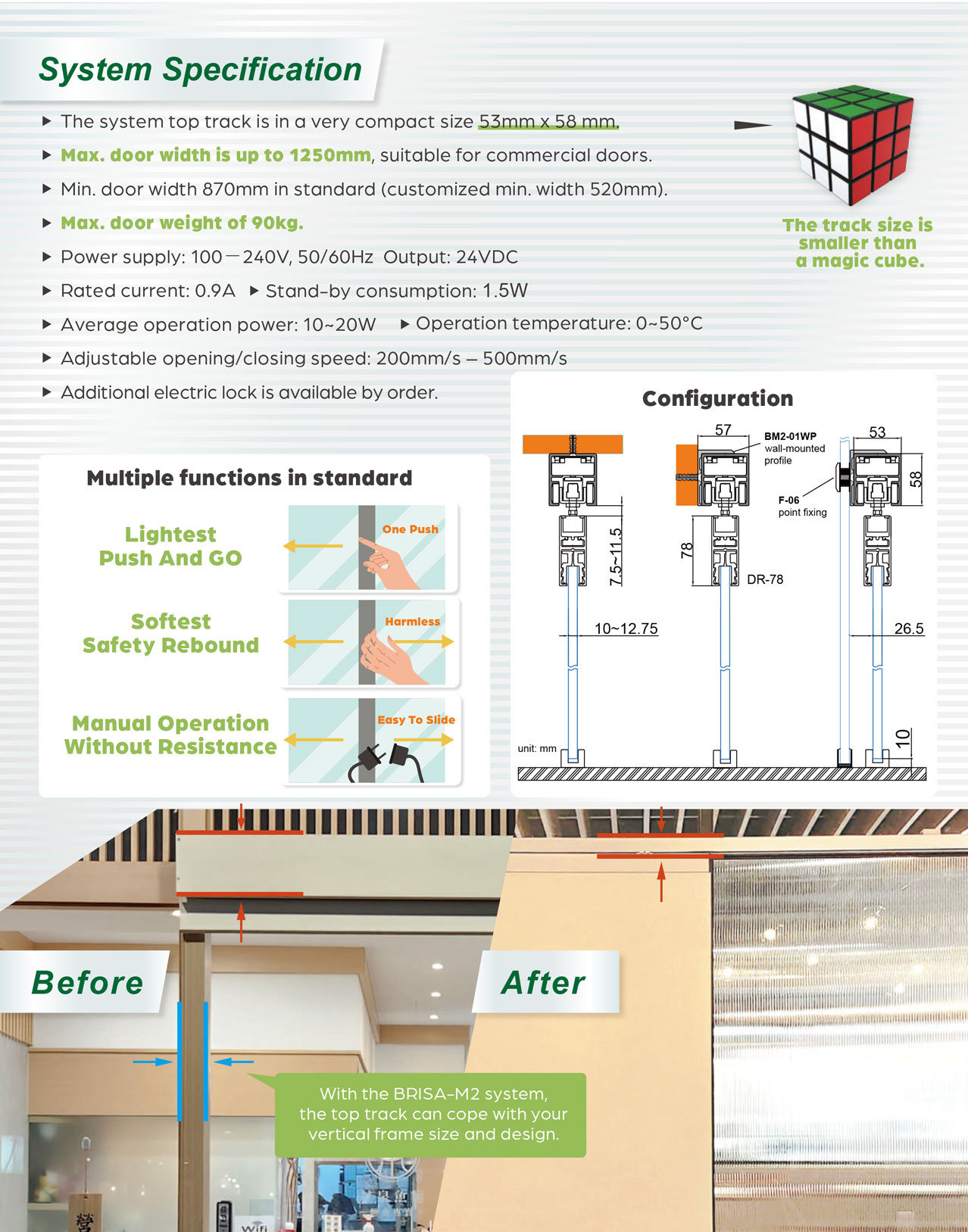

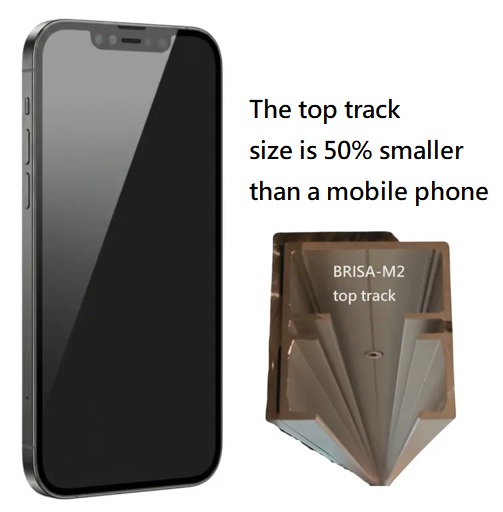

* Super compact top track size
* Fast and Easy installation
* No noise operation < 43dB
* Modular size for a manual soft hold function is available by order.
BRISA-M2 video:
Product brochure
Product
Description
Language
BRISA-M2 operation and maintenance manual
operation and maintenance manual
EN
BM2+BM2_Panorama
flyer
EN
磁気駆動オートドアシステムBRISA-M2
flyer
JP
