Automatic Bi-folding Door System - SFW-DR/AUTO

# The system is with safety motion sensors to prevent fingers trapped.

# Minimum maintenance is required.

# Easy installation with the operation noise less than 50dB.

# Anti-copy remote controls with a locking function are available by order.

# Suitable for interior and exterior movable partition wall use.

# The system has passed a 50,000 cycling test.

  • Max. panel's width with the offset hung roller carriages: 850mm
  • Max. panel's width with the center-hung roller carriages: 1100mm
  • Max. panel's height: 3000mm
  • Max. panel's quantity in one unit: 6 panels (recommended) , For 12 panels can be separated to six panels at left and six panels at the right side.

  • The door panel’s quantity in one unit has to be 2/4/6 panels in even multiple.
  • If the total panel’s quantity is in odd multiple such as 3/5/7 panels, an extra independent single/double swing panel is required on the opposite side.
  • The system is designed for inward folding.

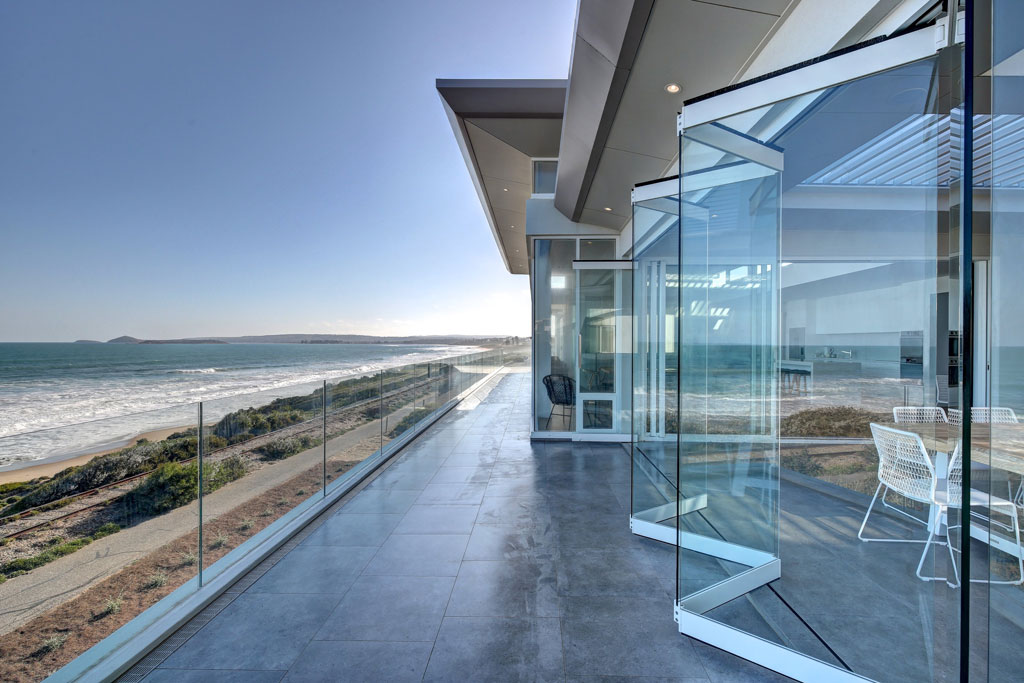

glass bifolding door

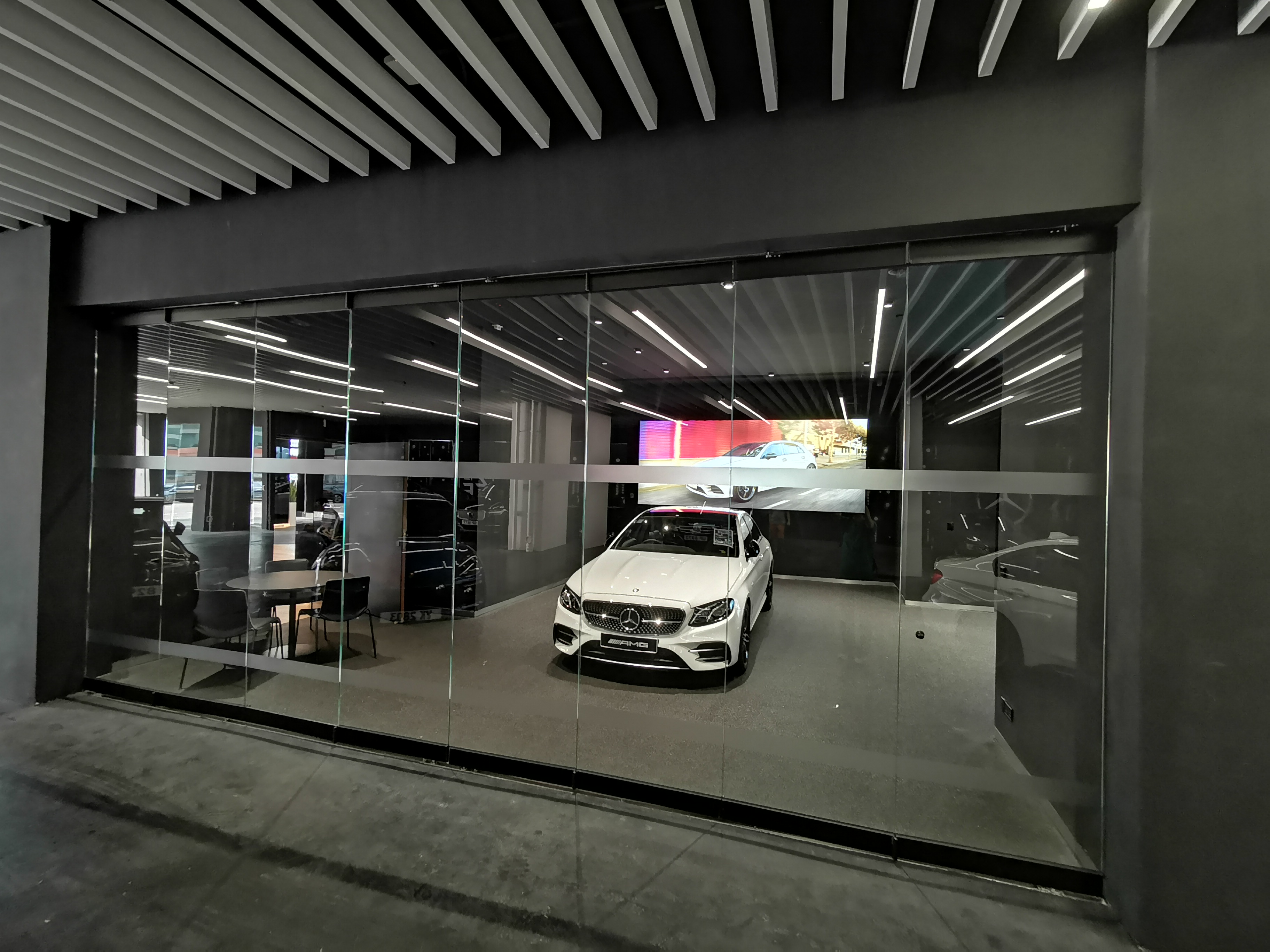

automatic bifolding

For more details, please email us or click the Youtube video link to find how the system works: https://www.youtube.com/watch?v=QtFTpyeoCE0
Product brochure
Product
Description
Language
SFW-DR/AUTO introduction
brochure
EN
Complete GCC movable wall systems
brochure
EN
